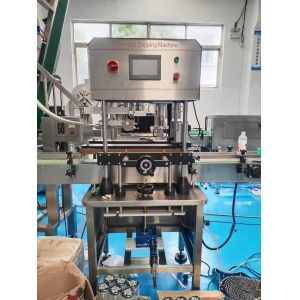

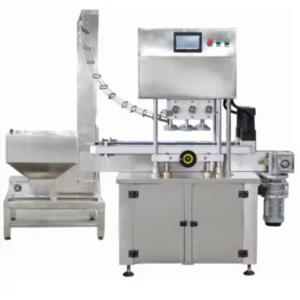

1.Automatic Cap Feeding Machine and Cap Screwing Machine Introduction :
Automatic Cap Feeding Machine and Cap Screwing Machine is widely used for glass bottle steel caps/screw plastic caps and plastic bottle thread caps . It equips positioning plate for interval running, capped by one , two or three magnetic moment rotating heads. The machine has practicability in field of chemical, foodstuff etc. It is real ideal equipment for bottle capping. It also applied to seal aluminum cap, theft proof cap, screw- thread cap etc.
Rotating disc realize location ,it is easy to change specifications and has big adjust range.
Adopt dividing bottle plate fix position.
Come in and out bottles is smooth, frequency conversion adjusting speed and easy to connection.
The structure for Servo Motor Capping Machine is simple ,the operation is convenient and easy to maintain.
2. Automatic Cap Feeding Machine and Cap Screwing Machine Parameters :
| material | ss304 |
| operation | PLC |
| Size | 1.1mx0.9mx1.7m |
| weight | 250kg |
| cap size | Diameter: 12--120mm |
| Capping speed | 30-40b/min |
| power | 0.35-0.75Kw |
| Power supply | AC220V 1 phase 50/60Hz |
| Compressed air | 0.4-0.6MPa |
| bottle material | glass/plastic |
| capping method | screw capping |

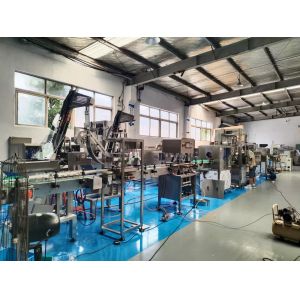

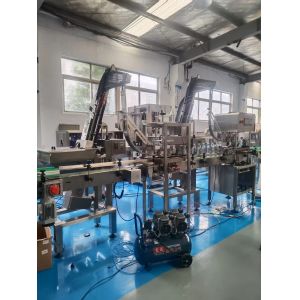

we can provide the whole line from turntable + Automatic Round Bottle Magnetic Pump Liquid Filling + Automatic Cap Feeding Machine and Cap Screwing Machine
cap feeding machine with two sets cap feeding mold and a set customized machine which has screw capping and pressing cap
welcome to send us inquiry about Automatic Cap Feeding Machine and Cap Screwing Machine
